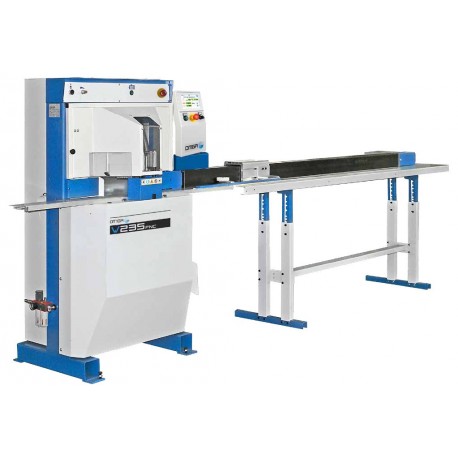

  • OMGA V235 production double miter saw with OMGA Stop positioning system

    • OMGA V235 double miter saw with OMGA Stop

    SKU:
    OM900766014361-ST10
    Ordering and Lead-Times:
    Please contact us for a detailed quote, current lead times, accessories and installation options.

    Product Description

    Our most popular package consisting of OMGA V235 production double miter saw with OMGA Stop
    OMGA V 235 is the latest generation vertical Double Miter Saw from OMGA; the V 235 is the result of 30 years of experience in this field.
    This compact and powerful system comes equipped with all features and patented devices that OMGA designed throughout the years, such as the ProfilBlock clamping system or the popular patented Scaled Tables to name a few.
    The vertical travel system along with its 2 powerful 2 HP motors, make of the V 235 the perfect choice for accuracy and toughness in a variety of application for the picture frame, cabinet and millwork industries.
    Because of its versatility the V 235 is well suited to be connected with an OMGA Stop creating a truly integrated system which can be configured in a variety of levels of automation to fulfill the most demanding mitering tasks.
    Optional equipment such as Scaled Table Extensions, Dust collecting Systems, additional Moveable Stops, Aluminum version Kit and others, can be added to further complete the standard machine.


    V235 & Stop Machining sequence:
    • Operator enters desired cutting length on touch screen
    • OMGA Stop moves to selected position
    • Operator inserts material and activates push buttons on front console – vertical pneumatic clamps secure material on table.
    • Saw blades cut through material and retract up to their home position.
    • Pneumatic clamps release material.
    • Operator removes finished work-piece and repeats cycle.
    OMGA Stop automated stop system
    The OMGA Stop  is a numerically controlled stop and positioning system. Used as a precision stop, the OMGA Stop eliminates the need of imprecise and repetitive use of the tape measure while optimizing the sequential processing of a lot of material.
    The system comes complete with software for both Pusher, Stop and Picture Frame applications, there is nothing additional to purchase!
    Software Operates in either millimeters or inches. Input can be in fractional form as well as decimal. The onboard Controller with Touch-Screen can be supplied in a selection of five different languages.
    The unit includes advanced diagnostic capabilities for ease of troubleshoot.
    In addition to direct data entry the OMGA Stop also includes one USB two serial RS 232 and one RJ45 Network ports to allow for interfacing to other computers, bar code reader, printers, USB Memory Keys and other devices

    We also offer OMGA Stop Systems with 6 foot, 10 foot, 13 foot, 16 foot and 22 foot working lengths.

    OMGA V235 Technical Specifications:
    Power Supply                 230 Volts, 3 P, 20 Amps.      (208 volt, 3 phase or 460 volt, 3 phase models also available)
    Air Supply                        90 psi – 3 cfm
    Saw heads                       2 x 2HP, 3,200 rpm
    Saw blades                      350mm, carbide tipped
    Cutting capacity              3 9/16” width, 3” thickness
    Cutting angle                   45 degrees
    Minimum length             5”
    Maximum length            65”, longer lengths optional
    Operation                        push button and foot pedal
    Controls                           electronic operation with PLC
    Dust collection               2 x ports, 80mm diameter, min. 1000 cfm each

    OMGA Stop Technical Specifications:
    Brushless Motor Power
    0.66 Kw (0.9 HP)   120 volt
    Maximum Traversing Speed
    200 FPM
    Positioning Accuracy
    +/- .004"
    Software Versions Included
    Pusher Basic, Advanced Pusher and Picture Frame
    Maximum Number of Programs
    500
    Connection Ports
    2 X USB, 2 x R S232 and 1 x RJ45
    Removable Media
    USB Port - Ethernet Port
    Minimum cutting length
    approx. 5” (tip – to – tip)
    Maximum cutting length
    varies


    Standard Equipment:
    OMGA V 235 , 230 volt – 3 phase power, ready for operation, including infeed support table, right hand side manually adjusted length stop, air filter-regulator-lubricator assembly installed, two-hand safety operation, flow control valves for saw blade feed rates , emergency-stop-switch, manual and toolkit.
    Machines can also be ordered for 208 volt, 3 phase and 460 volt, 3 phase power at no extra cost - be sure to have a qualified electrician verify on-site power and specify desired voltage when ordering.

    Package Component Details:
    OMGA V 235 double miter saw (230 volts, 3p)
    Additional horizontal pneumatic clamps, L&R, adjustable  - for added safety and support
    Pressure regulators on vertical and horizontal clamps - to allow operator to adjust pressure based on moulding styles
    One set of two OMGA saw blades (350mm, carbide tipped)
    OMGA Stop, working length to be selected (120 volt, 1 ph)
    OMGA Table and adjustable support legs for OMGA Stop
    OMGA 45 degree bracket and safety interlink kit installed for V235 saw

    System requires on-site assembly, installation and training by trained technicians.
    Charges for freight and installation will be added.
