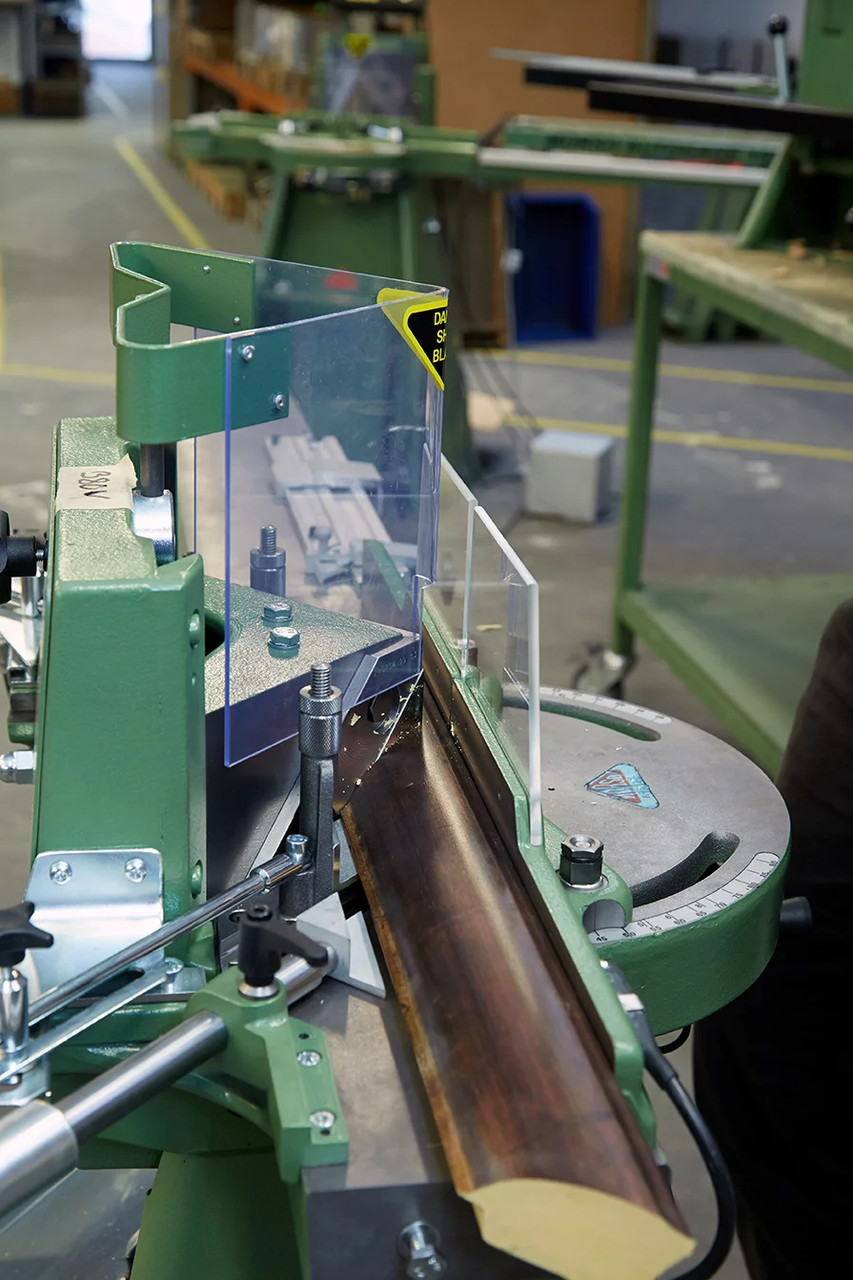

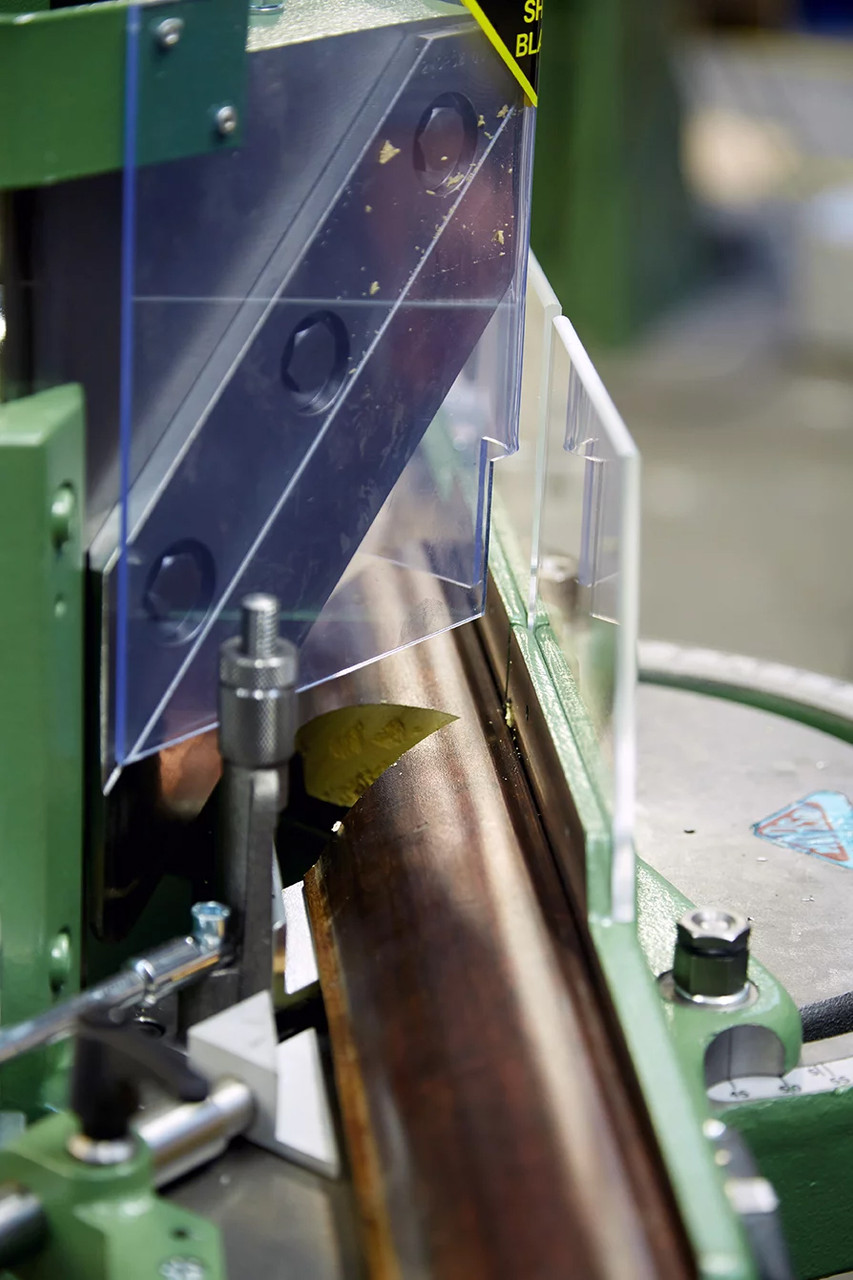

MORSØ F PLUS TEN DELUXE cuts double miter at 45° and single miter up to 90°. Tenon, mortise joints and a wide variety of angled cuts can also be made.
Cuts hard wood, soft wood, plastic and MDF.
The latest machine in the MORSØ range is the manually operated MORSØ F PLUS TEN DELUXE, which works after the same principles as the MORSØ F. The difference is that the height of the working table has been raised by 100 mm (4”).
The working height of the foot pedal is still the same, compared to the standard Morsø F. Especially for taller people the change of height makes the MORSØ F PLUS TEN DELUXE extremely more convenient and ergonomic to work with. Operators working the machines more than 1 hour a day need the best possible working conditions and this has now been achieved with the extra height.

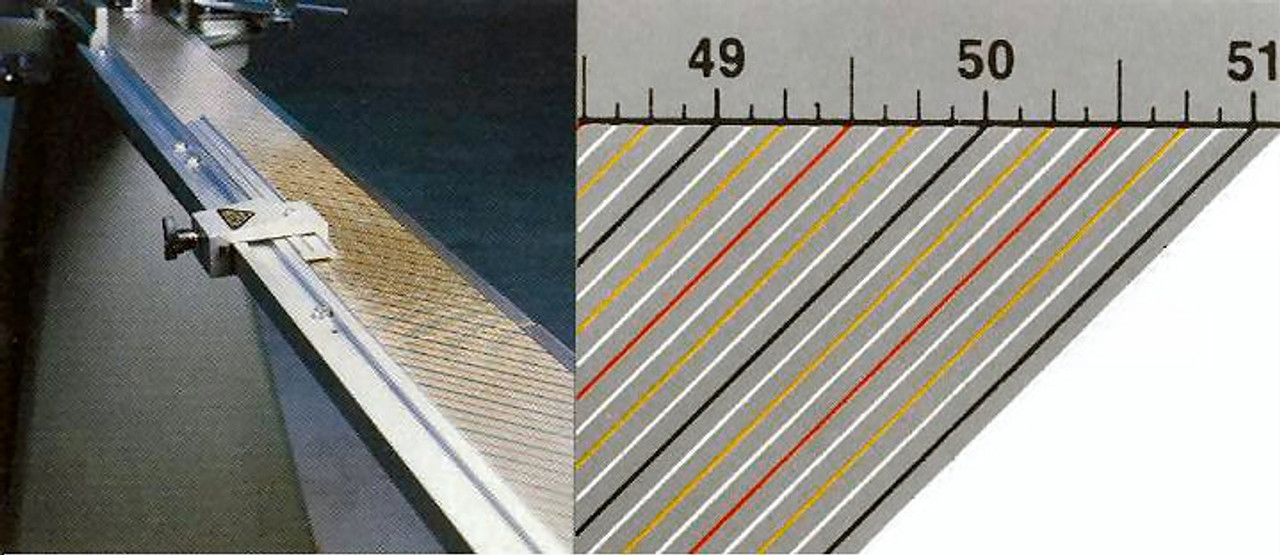

Compared to the standard MORSO F PLUS Ten, the DELUXE version of this model is shipped with a color coded scale for precise rebate measurements on picture frame moulding.We generally stock the Deluxe versions of MORSO F and MORSO F PLUS TEN, the standard versions are available as a special order.
MORSØ F PLUS TEN DELUXE Technical Specifications:Electrical connection NONE - this is a manual, foot operated machineDouble miter 45°
Single Miter up to 90°
Cutting width max. 100 mm (4”)
Cutting height max 160 mm (6 1/4”)
Measuring scale 1,500 mm (60”)
Net weight 90 kilos (198 lbs) The main features of the MORSØ F PLUS TEN DELUXE are:
• manually operated
• no compressor or electricity needed
• ergonomic working height
• dust free operation
• noiseless operation
• superb finish
• exact 45° degrees cut
• no extra preparations needed before joining
• built to last for generations MORSØ F PLUS TEN is delivered with:• adjustable rabbet supports
• automatic rabbet support
• left hand extension table
• safety guard
• waste chute
• sliding longitudinal stop
• measuring scale up to 1500
mm (available to 2500 mm
• adjustable fences
