Overview:

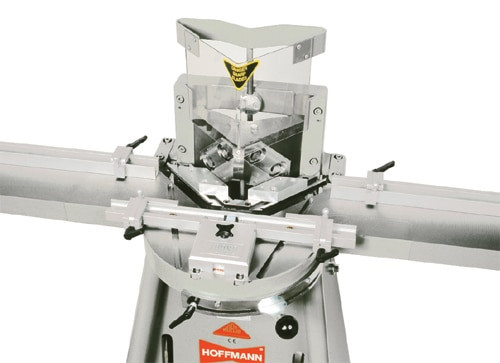

The MORSO NFL notching machine is a heavy-duty, foot pedal operated notching machine for the production of beaded face-frames, French-mitered cabinet doors as well as muntin and mullion joints. This manual model will accept moulding up to 2 3/4" wide, allowing the operator to process many types of standard face frame moulding, except wider bottom and top rails.
The machine features a heavy-duty steel frame with cast iron tabletop. The vertical travel of the cutting head, which is also made of cast-iron, can be adjusted depending on work-piece thickness, assuring comfortable operation.
Factory-fitted cast-iron extensions tables for left and right side are included and so is a full set of MORSO U-channel fences and flip-stop (optional DGS 1000 fence system is a popular upgrade).
Optional smaller Cutting Head
To increase the range of applications, we offer smaller cutting heads for MORSO NFL notching machines. These smaller heads are required to install 1/4”, 5/16” or 3/8” wide nose knives which are generally used for mullion or muntin joinery. The cutting heads can be replaced in only minutes and MORSO NFL side knives fit on both heads; only the nose knives differ in design
Operation:
Beaded Face-Frame Notching Operation – full notch in stiles to accept cross rails
Upon adjusting the cock-bead stops to set the notching depth, the moulding is placed on the machine table and one end is rested against a flip-stop. The hand lever in front is used to move the cutting head horizontally to and from the operator. Depending on the width of the cut, the thickness and hardness of the moulding, two to four cuts are made to complete the notch. This process takes only seconds and the resulting cuts are smooth and free of tear-out.
Beaded Face-Frame Notching Operation – half notch in stiles to accept top and bottom rails
A half-notch for top and bottom rails is cut into the left and right stiles in the same manner as a full notch. A “long arm” flip-stop is used to position the stile properly (the long arm is designed to reach past the cock-bead stops). For wider cross rails the stile is moved sideways after each cut until the desired notch width is reached.

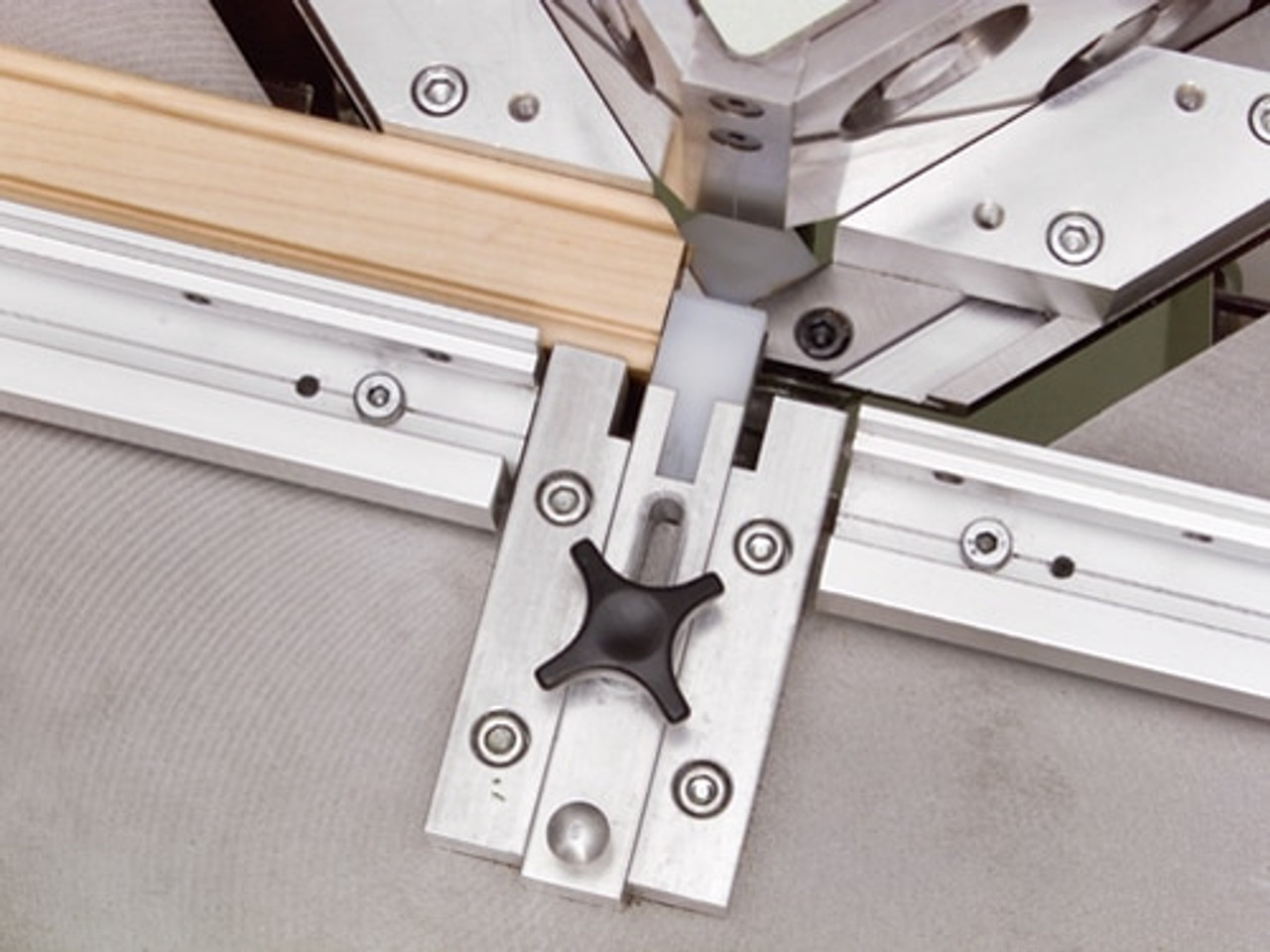

Beaded Face-Frame Coping Operation – clipped corners on rails
Upon adjusting the setscrews in the nylon center fitting, the stop is moved toward the cutting head and locked in place. The rail is placed on the table and pushed against the stop. The 45-degree corner cut on the bead is made in one cycle, multiple cuts are not necessary. The moulding is then flipped end-for-end and the process is repeated.
Window Mullion Notching Operation – step 1
Upon adjusting the cock-bead stops to set the notching depth, the moulding is placed on the machine table and one end is rested against a flip-stop. The hand lever in front is used to move the cutting head horizontally to and from the operator. Two cuts are generally enough to produce a clean notch.
IMPORTANT:
The mullion profile must have a “flat-spot” in the center and this flat spot should match the width of the nose knife. We highly recommend you produce your mullions with a 1/4” flat spot – you can then use not only a 1/4” wide nose knife with your notching machine but also a 1/4” spiral router bit on a Hoffmann routing machine for step 3.
Window Mullion Notching Operation – step 2
Once all notches are cut along one edge of the mullion, the process is repeated on the other side. It is important to have the notches aligned for tight joints.
A DGS 1000 fence system is a worthwhile investment for these operations.
Window Mullion Routing Operation – step 3 (shown on Hoffmann X-20)
Once all notches are cut on a MORSO notching machine, one-half of the mullion stock needs to be removed to create a half-lap joint. We offer a complete fixture set including the necessary 1/4” spiral down-cut bit under part number W30110000 Half-Lap Joint Fixture Kit.
One set of mullions (either the vertical or the horizontal pieces) are routed from the bottom up and the other set must be routed from the face side down.
We use a spiral down-cut bit to minimize “fuzzing” or tearing of the material, a slow and steady routing stroke produces very clean cuts even on profiled mullions.
Fixtures are compatible with Hoffmann X-20, MU3, MU3-D, MU3-P and MU3-PD machines.
Mullion on half-lap fixtures - cutting into top (front) of mullion
Mullion on half-lap fixtures - cutting into bottom (back) of mullion

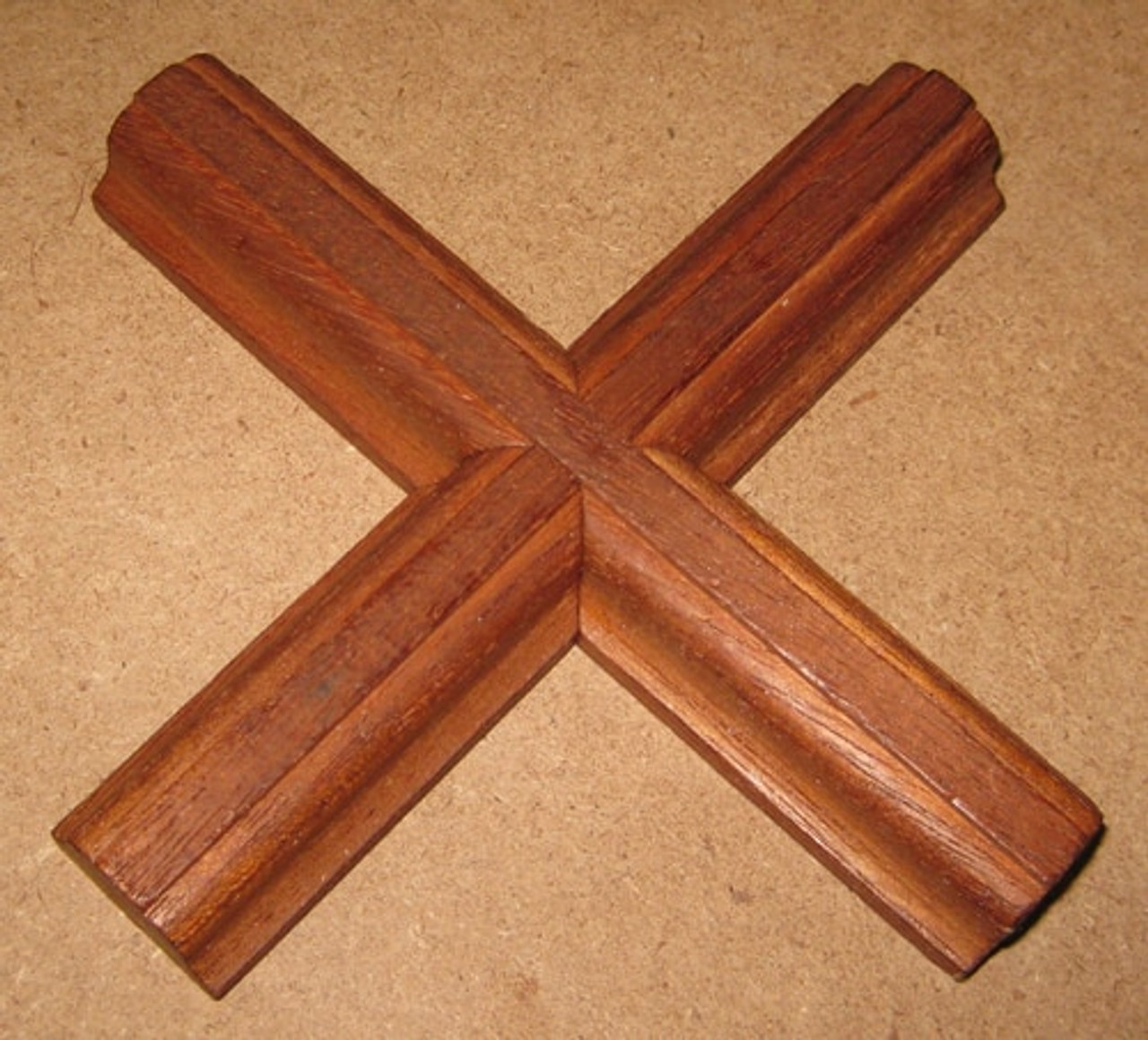

Completed half-lap mullion joint - front

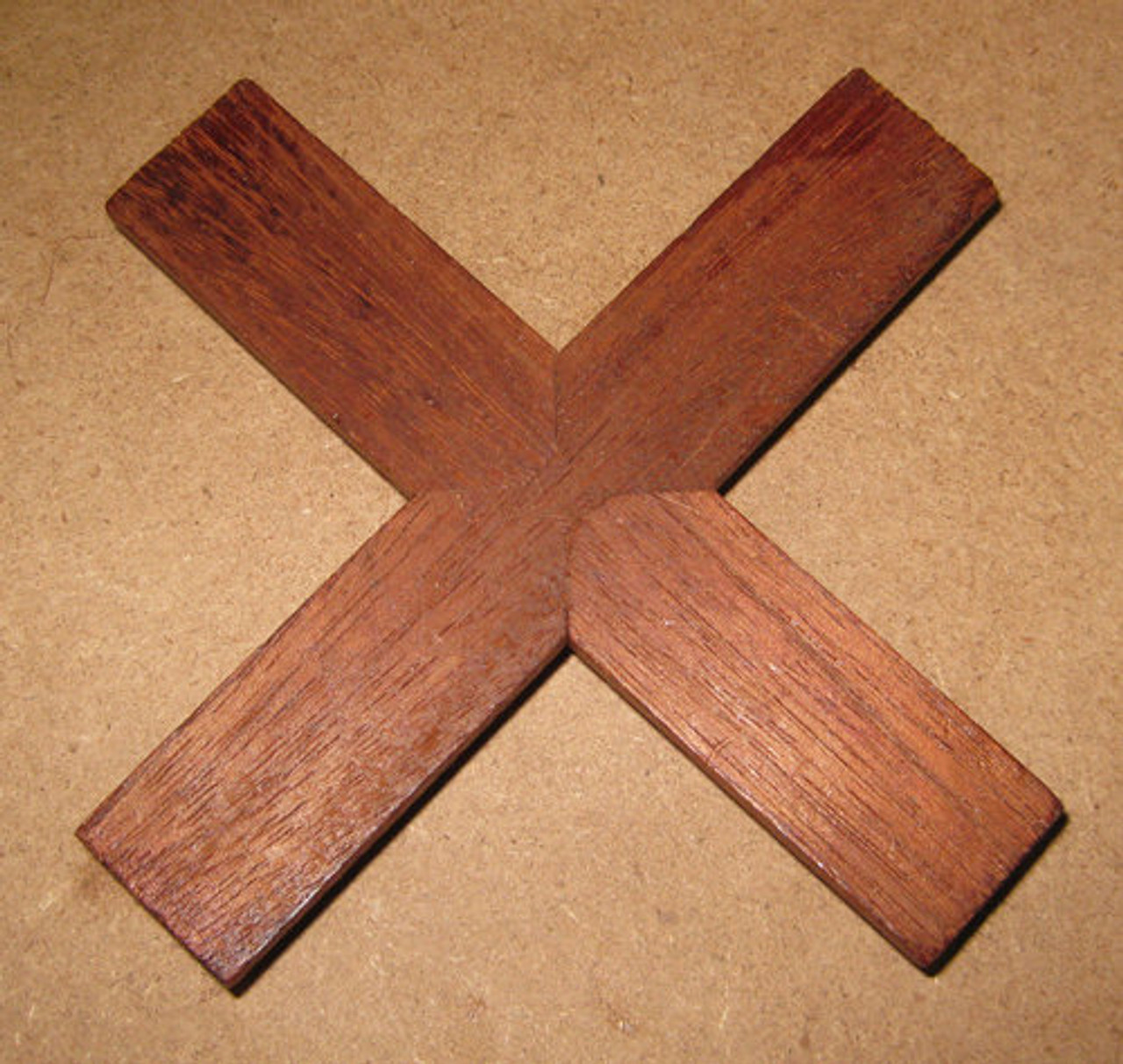

Completed half-lap mullion joint - back
Options:

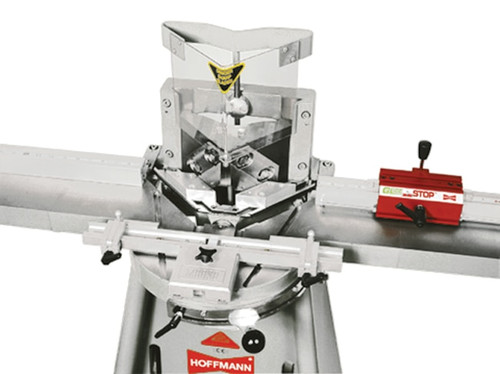

Optional DGS 1000 GlideStop Fence system for MORSO NFL
A complete GlideStop fence system is available as an option for all MORSO notching machines.
This upgrade offers the following benefits:
Fully adjustable index stops can be set at any point along the fence rails for repeated accuracy
Index Stops can be spaced as close as 9/16" apart
Twenty index stops are included in the basic package, additional Stops can be added anytime
Index stops can be by-passed at any time without moving and re-setting
Self-adhesive tape scales on both fence rails for accurate positioning in 1/32" increments
Offers the benefits of twenty standard flip-stops at a fraction of the cost
Once set, the GlideStop uses a spring-loaded contact arm to register against the index bolts. This "mechanical memory" design has the accuracy needed to make precisely spaced face-frames, again and again. It is especially helpful for repetitive settings like drawer banks, door openings, etc. which do not change from job to job. In addition, the system allows the user to by-pass pre-set index bolts at any time, without having to move and re-adjust the stops!
The contact arm is simply tilted forward, sliding over the stop index.
The position of the GlideStop is shown on the tape scale, hairline pointers on each side make set-up fast and reliable. An optional digital upgrade is available if a digital read-out in inches and millimeters is preferred.
The patented GlideStop design uses a pressure bar to clamp against the fence rail. This avoids the marring of the rails by the locking lever, and it also assures positive clamping without "creeping". Simply slide the GlideStop to the desired position and turn the locking lever - done.
Automated Positioning Systems:
To drastically increase productivity and accuracy when manufacturing beaded face-frames we offer automated positioning systems with and without integrated cut-off saws.
Link to systems without cut-off saws Link to systems with cut-off saws
These systems are available with manual MORSO NFL and NFXL or electro-hydraulic MORSO NLEH and NXLEH notching machines.
Retrofitting these systems to existing MORSO machines is also an option.
Please note that positioning system cannot be used with manual MORSO NM notching machines.
MORSO NFL Standard Features:
MORSO NFL series foot operated notching machines for beaded face-frames include:
- safety guard
- scrap chute
- four short-arm flip-stops and two long-arm flip-stops
- left and right hand side cast iron table extensions
- left and right hand side aluminum fence rails
- one set of original MORSO side knives, factory ground and honed
- one 3/4" wide nose knife and one 1" wide nose knife, factory ground and honed
- detailed instructions incl. parts diagrams
Warranty:
Mechanical parts are warranted for twelve months.
Complete MORSO warranty terms apply.
Freight Cost Information:
All MORSO NFL manual notching machines are shipped in a plywood crate which is attached to a pallet. This requires the use of a common carrier trucking company but greatly reduces the risk of transport damage to the machine.
If you would like to get a freight quote or place an order for this machine, please contact our office toll-free at (866)248-0100.
MORSO NFL notching machine - technical data:
|
Max. Moulding Width |
2 3/4" (70mm) |
|
Max. Moulding Thickness |
6 1/4" (155mm) |
|
Machine Controls |
manually controlled with hand lever and foot pedal |
|
Nose Knife Capacity |
1/2" - 1" width (1/4", 5/16", 3/8" nose knives require smaller cutting head) |
|
Extension Tables |
heavy cast iron, machined surface, 30 3/4" long, one left and one right hand side |
|
Fence Rails |
silver anodized aluminum, 59 1/2" total length, one left and one right hand side |
|
Table Height |
33" - floor to table surface |
|
Width Including Fence Rails |
118" |
|
Weight |
220 lbs. |
MORSO knife sharpening services
Whichever MORSO notching machine you choose, be sure to always return side knives and nose knives to Hoffmann, Inc. for sharpening. These knives require a special hollow grind geometry as well as hand-honing to achieve a razor sharp edge. Most commercial tool sharpening services do not have the correct equipment for these knives and once flat-ground, they are pretty much ruined.
We use a custom grinding machine made by MORSO to get your knives back to factory-new condition.
