Product Description

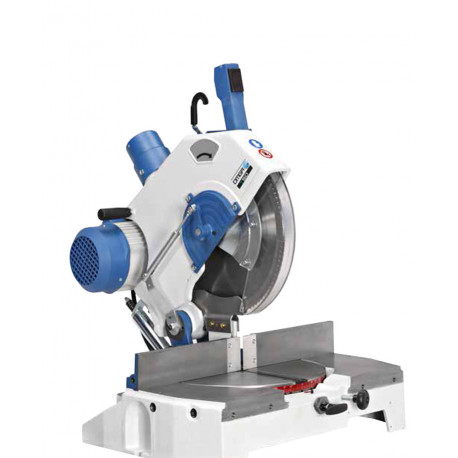

The heaviest duty of all model of OMGA's Precision Miter Chop Saws (along with the T 53 370), it features a solid cast iron base and head construction. The rotating table rides on roller bearings for maximum smoothness and accuracy. Positive stops at 45, 30, 22 1/2, 15 and 10 degrees on both sides of the rotation and an independently fine tunable one at 90 degrees. A manual locking device for all the intermediate angles provides a great flexibility to this unit.
The belt driven transmission and a powerful 3 HP induction motor make of the T 50 350 the ideal tool for heavy duty industrial usage. This machine is designed to be fitted with a wide variety of optional accessories to make it perfect for any application. This precision saw is a multipurpose machine suitable for use in general carpentry, for cutting moulding, picture frames, furniture components and any application requiring precision cutting.
OMGA T50 350 saws are available with 208 volt - 3 phase, 230 volts-3 phase and 460 volts - 3 phase motors. We recommend a qualified electrician verify on-site voltage before ordering.
OMGA T50 350 Technical Data
|
Electrical Power |
230 volts – 3 phase, 60 Hz |
|
Cross cut capacity 90 Deg. |
6 3/4" |
|
Cross cut capacity 45 Deg. |
4 3/4" |
|
Max. Depth of Cut |
4 5/16" |
|
Motor power |
3 HP |
|
Saw bore |
1" |
|
Saw blade diameter |
14" |
|
Arbor Speed RPM |
3200 |
Click on image to download OMGA brochure
