RGNFXL 143-14 Positioner (12ft.) and MORSO NFXL

Product Description

Overview
This System is designed for operations that already have an accurate and reliable cut-off saw, ideally with an automated positioning system, for cutting stiles and rails to length.

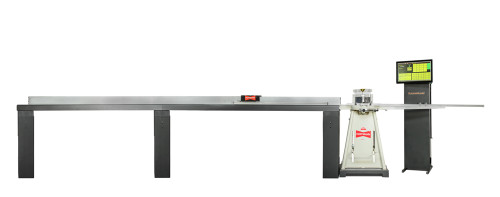

RazorGage Positioning System + MORSO face frame notching machine

When an accurate means to cut face frame stile and rail parts to length is already in place, a combination of RazorGage Positioning System coupled with a MORSO face frame notching machine is an ideal addition to any beaded face frame production.

Details
This automatic positioning system, combined MORSO notching machine, is designed for fast and accurate production of beaded cabinet face-frames. The precision stop system, manufactured by RazorGage to Hoffmann specifications, features a comprehensive software package that allows the operator to design face-frames individually right on the large color touchscreen or one can download complete files
from cabinet design programs capable of outputting .RZG files.
Both pieces of equipment are connected with special hardware and custom brackets to create an integrated, sturdy and reliable machining cell.

Software Features
The included software package allows the operator to design a face-frame “from scratch” on the touch screen or to download completed files via USB connections.

Different widths of stiles and rails are shown on screen for visual verification and it is no longer necessary to match moulding sizes with nose knives (recommended when using a manual stop system).

When a new nose knife is installed, its width is entered on screen and the program automatically calculates the correct notch positions as well as the number of steps if a notch is wider than the installed nose knife. Beaded face frames for custom cabinets, often with different size stiles and rails to match your clients design can now be manufactured quickly and effortlessly.


Operation

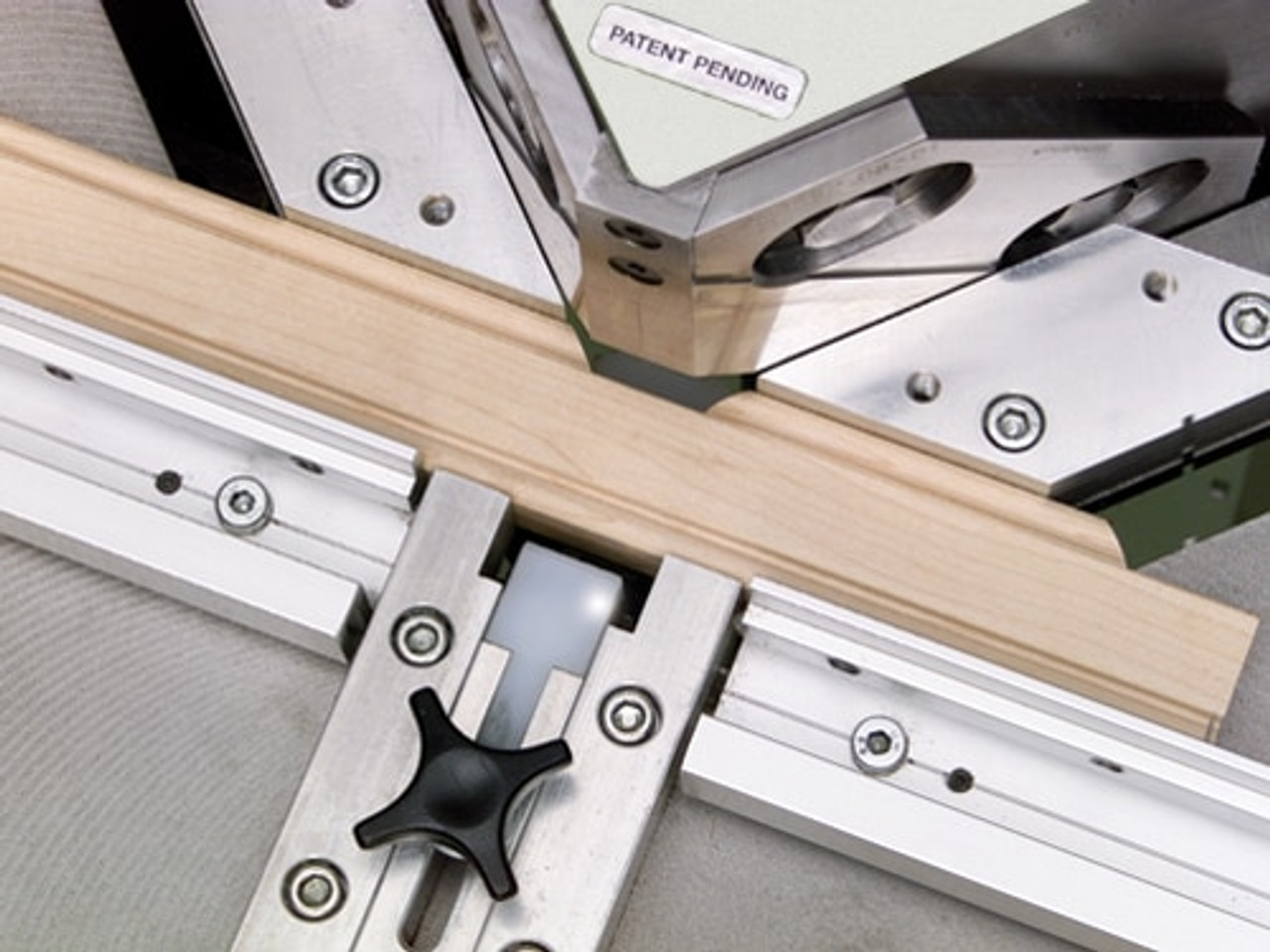

With all parts pre-cut on existing equipment, the operator uses the touchscreen for cope cuts and notches along the moulding edges.
After completing a notch, the operator presses a button and the system advances the material as needed for notches wider than the nose knife width. This allows for quick production of custom face-frames with stiles and rails in varying widths (wider top and button rails, wider cross member for refrigerator openings, smaller cross-members between drawers, etc.)
Accuracy is 4/1000’ (0.1mm), assuring tight, clean joints in stain and paint grade frames.

Different Systems Lengths to meet your needs
To best match the system with our customer’s production requirements we offer a variety of system lengths – see RGNFXL 95-14, RGNFXL 119-14, RGNFXL 143-14 and RGNFXL 167-14 models below.

              Technical Data RGNFXL 143-14

Please note - We reserve the right to make technical and design changes.

Whats included in the RGNFXL 143-14 Equipment Package:

• RazorGage Automatic Positioning System with 12ft. stroke length
• 143" working length on MORSO
• 15.5” touch-screen monitor and windows-based software package
• Riser platform for MORSO machine
• MORSO NFXL wide-capacity manual face frame notching machine
• One 3/4" and one 1" nose knife and set of side knives for MORSO NFXL
• All necessary hardware, instructions, toolkits, etc.

Installation by Hoffmann technician is highly recommended and is quoted based on time and travel distance.

If you DO NOT already have a reliable saw station for your face frame stock in place, you should consider a RazorGage + FESTOOL saw + MORSO combination system instead – please follow this link to our line of RGC Combo Systems.

And if you are like many our customers who have purchased a MORSO machine with a manual stop system in the past and you now need to meet increased demand for beaded face-frame cabinets, you can order a RazorGage Positioning System (with or without a cut-off station) individually and add it to your existing MORSO notching machine.Please contact us to discuss your needs and we will be glad to provide a detailed quotation.

MORSO knife sharpening services
Whichever MORSO notching machine you choose, be sure to always return side knives and nose knives to Hoffmann, Inc. for sharpening. These knives require a special hollow grind geometry as well as hand-honing to achieve a razor sharp edge. Most commercial tool sharpening services do not have the correct equipment for these knives and once flat-ground, they are pretty much ruined.
We use a custom grinding machine made by MORSO to get your knives back to factory-new condition.
