Product Description
Please click here to email us for a current freight quote – be sure to include your full address and whether you need optional services such as lift-gate service and/or residential delivery.
MORSØ-EH NOISELESS is extremely quiet,w ith a noise level below 62 dB. This is achieved by placing the motor and hydraulic pump in a separate, noise-insulated enclosure. The enclosure features swivel castors for easy of movement, an integrated fan is used to cool the motor int he enclosure.

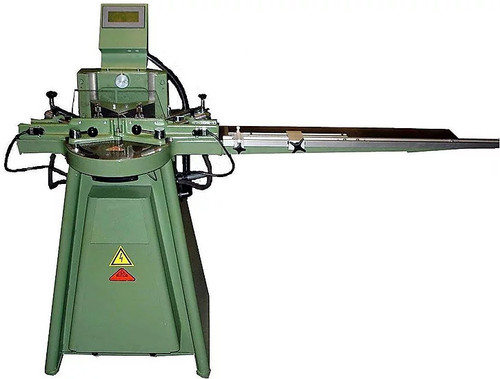

MORSØ-EH is a fully automatic, electric/hydraulic miter machine with a dual hand release. This makes the machine completely safe as it is impossible to operate the machine and touch the knives at the same time.
It cuts all kinds of wood, plastic, MDF and plywood. With MORSØ-EH NOISELESS you achieve a clean, smooth cut by automatically cutting the workpiece in minimum two cuts.
The cutting time varies from 1 second and up, depending on the thickness of the work piece. Having finished the cutting, the knife block automatically returns to the starting position. The starting position (horizontal movement) is adjustable up to 60mm/ 2½”, (maximum width of the workpiece is 100mm). From 60mm and up, the MORSØ-EH NOISELESS will automatically cut the workpiece bit by bit. The adjustment is made by a handle on the front of the MORSØ-EH NOISELESS.
The vertical movement of the knife block is also adjustable with three different heights depending on the thickness of the workpiece (small, medium, large).
Morsø-EH NOISELESS is CE approved
MORSØ-EH-NL Technical Specifications:
Electrical connection 230 volt, 1.1 KW - available in 3 phase or single phase (must specify when ordering)Double miter 45°Single Miter up to 90°
Cutting width max. 100 mm (4”)
Cutting height max 180 mm (7”)
Measuring scale 1,500 mm (60”)
Net weight 135 kilos (298 lbs) MORSØ-EH-NL is delivered with:
• dual hand release
• safety guard
• sliding longitudinal stop
• a second stop
• measuring scale up to 1.500 mm (60’’)
• waste chute
• extension table on the left side
• adjustable fences
• adjustable and automatic rebate support
• adjustable hydraulic clamping cylinders
