Product Description
This Standard GlideStop Outfeed Package includes two 75" foot sections of GS-2 aluminum fence rail and matching splice kit, one GlideStop moveable stop, a package of 20 index stops for setting repeat positions and a self-adhesive tape scale.

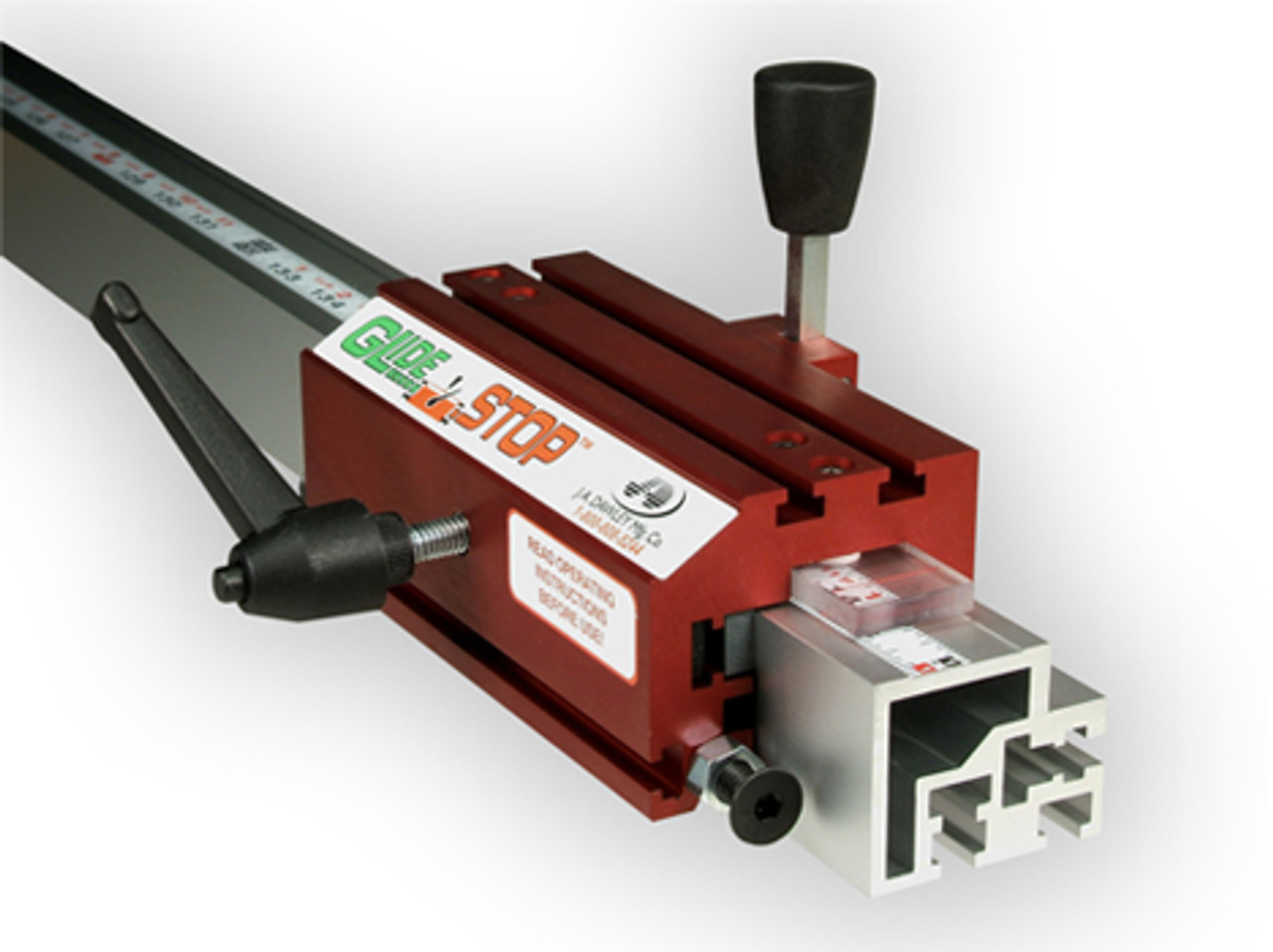

The GlideStop System includes heavy-walled, anodized aluminum fence rails and the moveable GlideStop.
Precision tape scales are read with the aid of adjustable hairline pointers on both sides of the stop assembly to assure accurate settings.
The fence rails are installed on existing or shop-built support tables with common 1/4"-20 hex-head bolts which slide into T-slots on the underside of the GS2 fence rail.Specially designed mounting brackets are available as well.
User adjustable index bolts are used in a special channel along the back edge of the fence rails to set multiple stops, which are referenced with a spring-loaded plunger on the GlideStop. Once adjusted, frequently used dimensions are found again and again with 100% repeatability and accuracy.
